What is Kafka? Core Components in Kafka - Comprehensive Guide from A-Z

Table of Contents

In the era of distributed systems and real-time data processing, Apache Kafka has established itself as one of the most critical platforms for data streaming and event-driven architecture.

ℹ️

Who is this for?

This article is suitable for developers, data engineers, system architects, and anyone who wants to learn about Kafka and its application in microservices.

1. What is Kafka?

Apache Kafka is an open-source distributed event streaming platform, developed by the Apache Software Foundation and written in Java and Scala.

"Apache Kafka is an open-source distributed event streaming platform used by thousands of companies for high-performance data pipelines, streaming analytics, data integration, and mission-critical applications."
— Kafka Homepage

History

2011: Kafka was originally developed by LinkedIn and later open-sourced and donated to the Apache Software Foundation.
Founding team: Jay Kreps, Neha Narkhede, and Jun Rao (who are also the co-founders of Confluent).
Naming: Named after the author Franz Kafka - one of the greatest writers of the 20th century.

💡

Primary Purpose

Kafka is designed to solve the challenges of processing massive amounts of data in real-time, allowing applications to efficiently publish, subscribe, store, and process event streams.

2. Architecture and Core Components of Apache Kafka

To understand how Kafka works, we need to master the following core components:

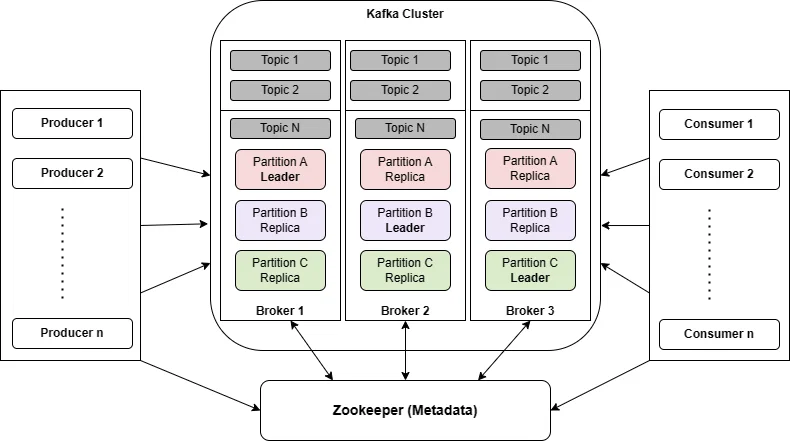

Kafka Architecture - Source: Kafka: The Definitive Guide

2.1. Kafka Events

A Kafka event (also called a record or message) records the fact that "something happened" in the world or your business. Each event consists of:

Key: Event identifier (optional)
Value: The event data
Timestamp: Time when the event occurred
Metadata: Additional information

Example of a Kafka Event:


{
  "key": "Violet",
  "value": "Made a payment of $100 to Alex",
  "timestamp": "Jun. 25, 2023, at 2:06 p.m."
}

2.2. Kafka Topics

Topics are where events are organized and durably stored. You can visualize it as:

Topic = Folder in a filesystem
Event = File residing within that folder

Partitions are the fundamental unit of parallelism in Kafka:

Each topic is divided into multiple partitions
Each partition is hosted on a different broker
This enables horizontal scaling and significantly improves performance

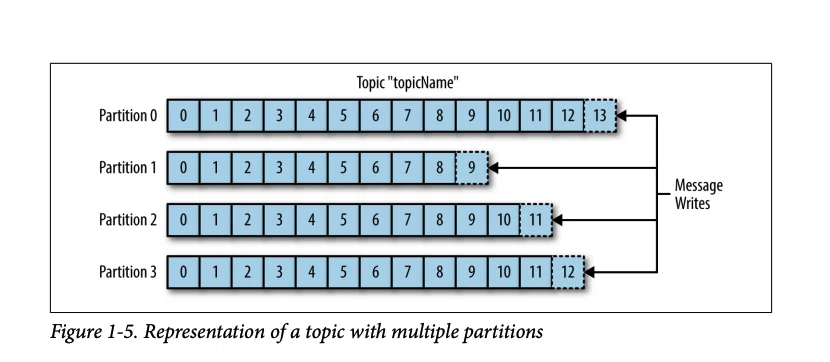

A topic with 4 partitions - Source: Kafka: The Definitive Guide

⚠️

Partition Rule

Each partition can only be read by one consumer within the same consumer group. This is a crucial factor when designing the system.

2.3. Kafka Brokers and Clusters

A Kafka Cluster consists of one or multiple Kafka Brokers:

Broker: A Kafka server responsible for managing storage, handling read/write requests, and replicating data.
Cluster Controller: A special broker designated to manage partitions and monitor the health of the cluster.
Scalability: Can be scaled across multiple data centers or the cloud.

2.4. Kafka Partitions and Replication

Offset: Each event in a partition is assigned a unique offset (starting from 0), which helps pinpoint the exact location of the event.

Replication Factor:

Each partition can have one or more replicas across different brokers
Leader: The primary broker that handles all read/write requests
Followers: Brokers that replicate data from the leader
Leader Failover: If the leader fails, a follower is elected as the new leader

Component	Description	Role
Leader	Primary broker	Handles all read/write operations
Follower	Standby broker	Syncs data from the leader, ready to take over when needed
In-Sync Replica (ISR)	Healthy followers	Candidates for leader failover

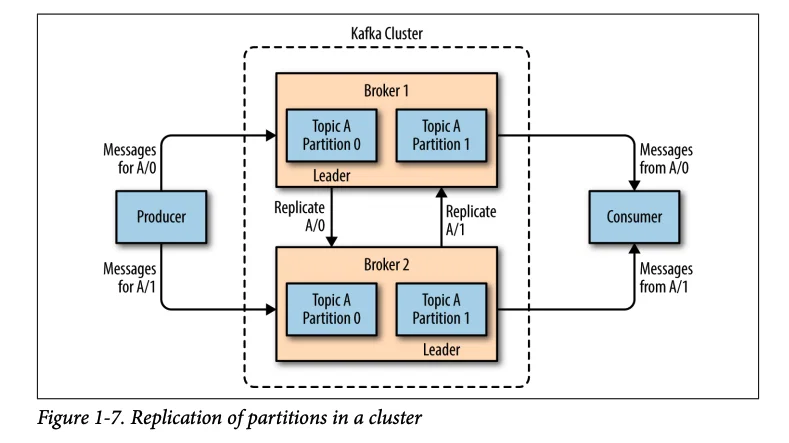

Replicating partition data within a cluster - Source: Kafka: The Definitive Guide

2.5. Kafka Producers

A Producer is a client application that publishes events to Kafka topics.

Event sending workflow (4 steps):

Create ProducerRecord: Includes topic, value (required), and partition/key (optional)
Serialization: Converts key and value into byte arrays
Partition Selection: The partitioner decides which partition the event will go to
Batch & Send: Events are batched together and sent to the broker

Producers always write to the Leader broker of the partition.

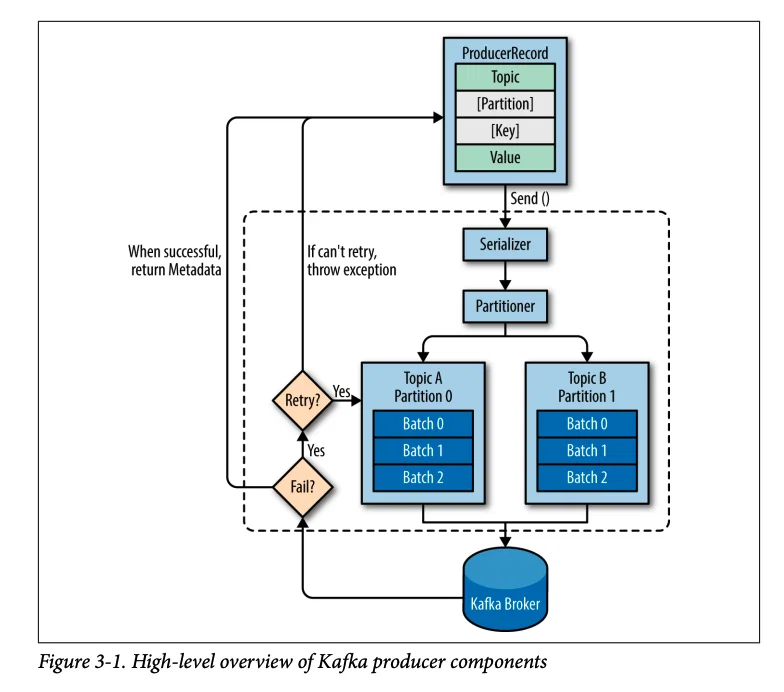

Overview of Kafka producer components - Source: Kafka: The Definitive Guide

2.6. Kafka Consumers

A Consumer is a client application that subscribes to and reads events from Kafka topics. Consumer Groups allow:

Multiple consumers to work together
Horizontal scaling
Each partition to be read by only one consumer within the same group

3 scenarios when using Consumer Groups:

Scenario	Consumers vs Partitions	Result
Scenario 1	`Consumers < Partitions`	One consumer will process and read data from multiple partitions simultaneously.
Scenario 2	`Consumers = Partitions`	Ideal — Each consumer holds the read/write configuration on exactly 1 partition, optimizing performance.
Scenario 3	`Consumers > Partitions`	Not recommended — Excess consumers will fall into an idle state because no partition is assigned to them.

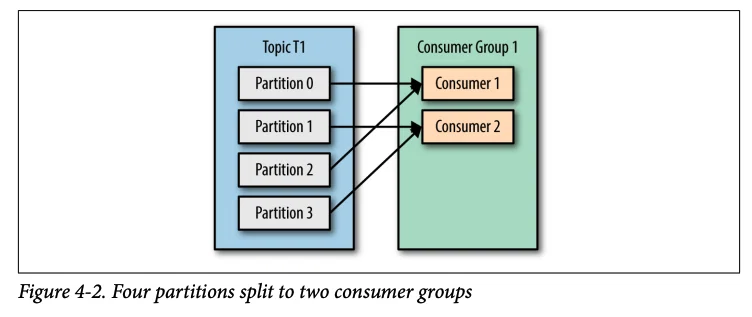

Scenario 1: Consumers < Partitions - Source: Kafka: The Definitive Guide

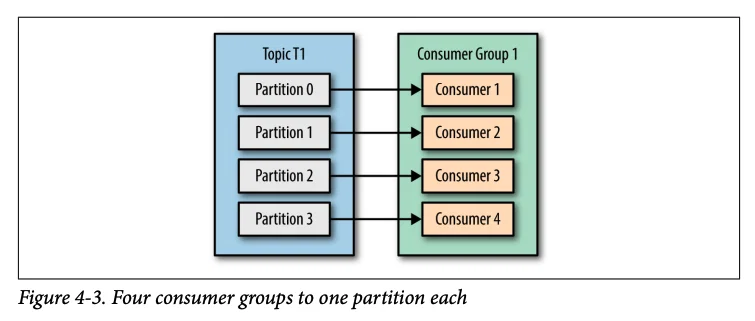

Scenario 2: Consumers = Partitions - Source: Kafka: The Definitive Guide

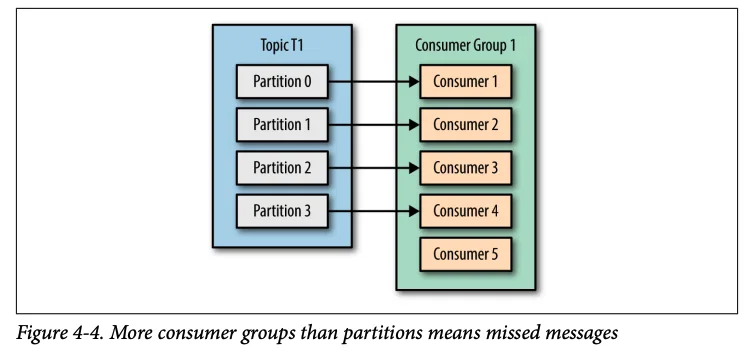

Scenario 3: Consumers > Partitions - Source: Kafka: The Definitive Guide

❌

Avoid Scenario 3

You shouldn't have more consumers than partitions because it leaves consumers idle, wasting resources.

2.7. ZooKeeper (Legacy)

ZooKeeper was traditionally used to:

Manage cluster metadata
Coordinate consumers
Maintain configuration information

ZooKeeper in Kafka - Source: Kafka: The Definitive Guide

[!NOTE] Since Kafka 2.8.0, Kafka can operate without ZooKeeper through KRaft (Kafka Raft mode).

ℹ️

KRaft - Kafka without ZooKeeper

KRaft is a new consensus protocol introduced in Kafka, allowing Kafka to manage its own metadata without relying on ZooKeeper. This helps:

Simplify the architecture
Improve performance
Reduce operational complexity

KRaft was introduced in Kafka 2.8.0 and became production-ready in Kafka 3.3.1.

2.8. Kafka APIs

Kafka provides 5 core APIs:

API	Function
Producer API	Allows applications to send streams of records to one or more Kafka topics.
Consumer API	Allows applications to read streams of records from one or more topics.
Streams API	Acts as a stream processor, helping to transform input streams into output streams.
Connect API	Builds and runs reusable `connectors` that link Kafka to external systems (e.g., databases, key-value stores, search indexes, or file systems).
Admin API	Helps manage and inspect Kafka objects like `topics`, `brokers`, `acls`, and other configurations.

3. Advanced Integrations with Kafka

3.1. Kafka Connect

Kafka Connect is a framework for scalable and reliable data streaming between Kafka and other systems:

Source Connectors: Pull data from external systems into Kafka
Sink Connectors: Push data from Kafka out to external systems
Use cases: Database replication, log aggregation, metrics collection

Kafka Connect - Source: Confluent

3.2. Kafka Streams

Kafka Streams is a client library for building applications and microservices, where the:

Input/output data is stored in Kafka clusters
Process real-time streaming data
Combines the simplicity of writing Java/Scala apps with the core benefits of Kafka clustering

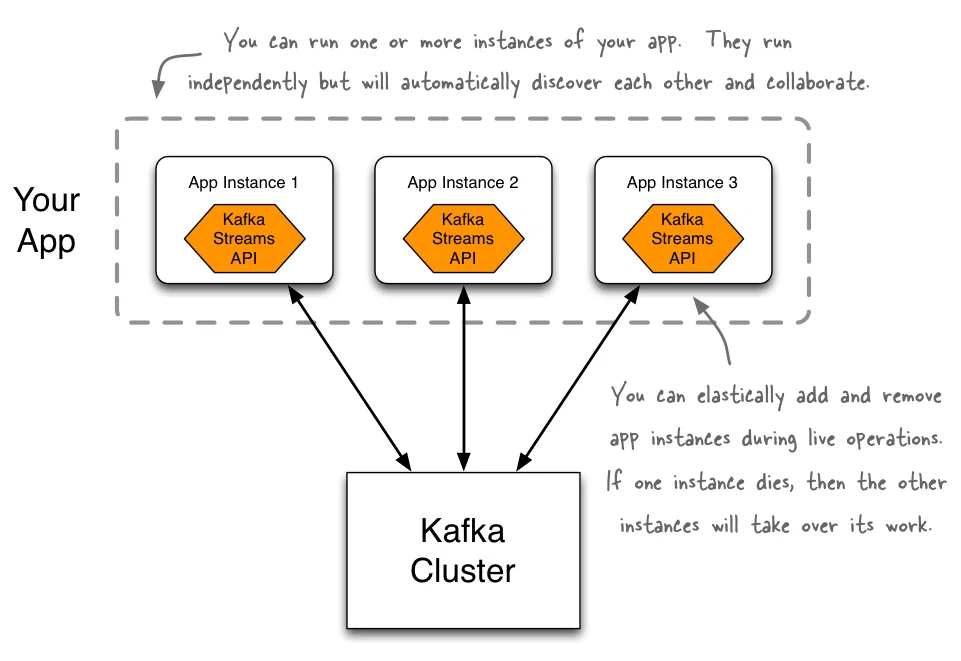

Kafka Streams API - Source: Confluent

3.3. Schema Registry

Schema Registry provides:

Centralized storage for schemas
Validation and compatibility checking
Serialization/deserialization (Avro, JSON Schema, Protobuf)
An API for producers and consumers to check compatibility

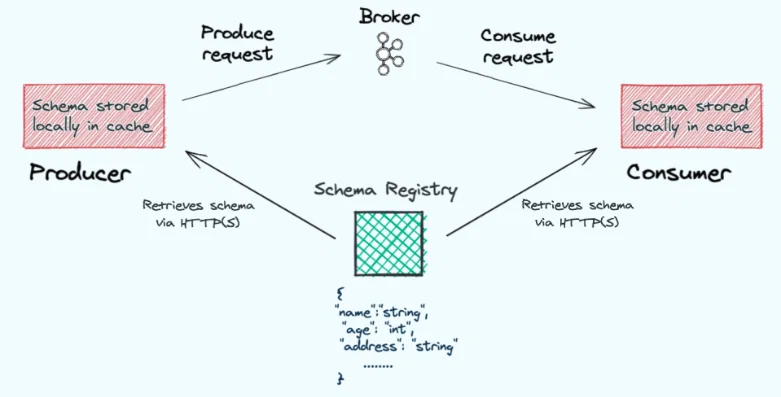

Schema Registry - Source: Confluent

✅

Benefits of Schema Registry

Ensures data compatibility between producers and consumers, preventing breaking changes in production.

4. Advantages of Kafka

Advantage	Description
📈 Scalability	Distributed architecture allows for easy horizontal scaling by simply adding more brokers and partitions.
💾 Durability	Data replication across multiple brokers combined with the append-only commit log ensures your data is secure and won't be lost.
⚡ Real-time Processing	Supports continuous data streaming and processing in real-time with ultra-low latency (in `milliseconds`).
🔓 Open-source	Completely free, backed by a massive community, and boasts powerful integration capabilities with many other tools and libraries.
🔄 Long Polling	A `pull-based` mechanism combined with long polling enables consumers to efficiently pull data, optimizing and minimizing network overhead.
📊 High Throughput	Extremely high throughput capabilities, capable of handling and transferring millions of messages per second without performance degradation.
🔧 Fault Tolerance	Highly fault-tolerant thanks to automatic failover mechanisms and high availability architecture.

5. Disadvantages of Kafka

Disadvantage	Solution / Mitigation
🐘 ZooKeeper Dependency (older versions)	Upgrade to a newer Kafka version to run in KRaft mode (supported since 2.8.0+), eliminating ZooKeeper dependency and simplifying the architecture.
⚙️ Complexity	Invest properly in operational training, or switch to fully managed cloud services like Confluent Cloud or AWS MSK to reduce the infrastructure management burden.
💰 Resource Requirements	Needs careful capacity planning from the start, combined with strict monitoring systems and auto-scaling mechanisms.
📚 Learning Curve	Adopt gradually by starting with simple data use cases, then incrementally increasing scale and complexity as the team masters the technology.
🔧 Tuning Required	Spend time researching and fine-tuning configurations to optimize performance for your specific business requirements.

6. Real-world Use Cases of Kafka

6.1. Activity Tracking

Use case: LinkedIn uses Kafka to track user activities (page views, searches, clicks)
Flow: User actions → Kafka topics → Backend processing → Analytics

6.2. Metrics & Monitoring

Collect metrics from applications and infrastructure
Real-time monitoring and alerting
Log aggregation from multiple sources

6.3. Stream Processing

Real-time data processing
Fraud detection in financial transactions
Sensor data processing (IoT)
Real-time recommendations

6.4. Event Sourcing

Store state changes as a sequence of events
Audit trails and compliance
Rebuild state from event history

6.5. Data Integration

Bridge between heterogeneous systems
Database replication (CDC - Change Data Capture)
Microservices communication

6.6. Commit Log

External commit log for distributed systems
Data synchronization between nodes
Disaster recovery and state recovery

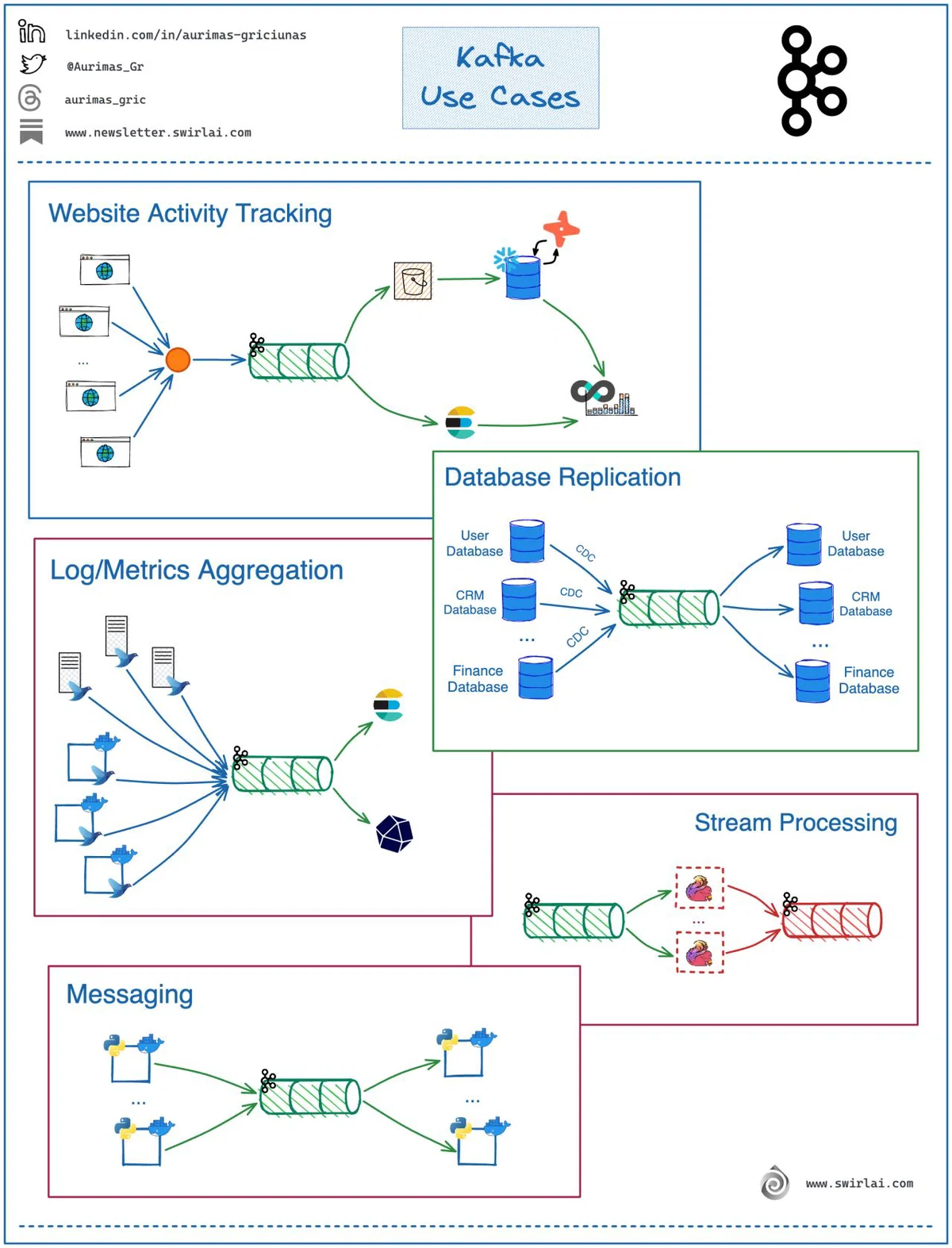

Kafka Use Cases - Source: Confluent

💡

Kafka Ecosystem

Kafka is not just a message queue - it's a complete platform with Connect, Streams, and Schema Registry forming a robust ecosystem for data streaming.

7. Conclusion

Apache Kafka has revolutionized how organizations handle data streaming and event processing. With its:

✅ Robust distributed architecture
✅ Fault tolerance and high availability
✅ Virtually limitless horizontal scalability
✅ Low-latency real-time processing

Kafka is ideal for:

Big Data pipelines
Real-time analytics
Microservices communication
Event-driven architectures
Log aggregation and monitoring

✅

Next Steps

Understanding Kafka's core concepts is the essential foundation for maximizing the potential of real-time data streaming. Start with simple use cases and gradually expand into more complex architectures.
